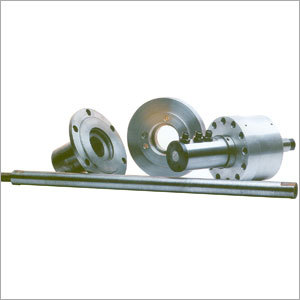

Hydraulic Rotary Cylinder

Get a Price/Quote

Hydraulic Rotary Cylinder Specification

Features
Corrosion resistant, durable construction, precise rotary motion

Power Source
Hydraulic

Mounting Type
Flange Mount

Flow Rate
Variable, based on application

Connectivity Type
Hydraulic port connections

Efficiency
High mechanical efficiency

Operating Pressure
Max 300 bar

Application
Machine tools, automation, indexing devices, rotary actuators

Accessories
Hydraulic fittings, mounting flanges

Body Material
Alloy Steel

Type
Hydraulic Rotary Cylinder

Structure
Rotary

Force
High capacity

Speed
Up to 3000 rpm

Voltage
Hydraulic operation (No direct voltage)

About Hydraulic Rotary Cylinder

Our huge infrastructure is technologically advanced to manufacture, supply and export premium quality Hydraulic Rotary Cylinder. The offered cylinders are non-corrosive and long lasting as we manufacture the seal and O rings by making use of best quality stainless steel, procured from the reputed vendors of the industry. Our cylinders are demanded by various industries to operate Power chucks as the cylinders are leak proof and generates less heat. Our skilled professionals examine the Hydraulic Rotary Cylinder by testing it for several hours to offered our clients with high performance products.

Other details:

The cylinders are equipped with catchers to collect oil running through the machine spindle and return it to the reservoir.

Special Features
The design of cylinder is such that the distributor shaft rotates on special bearing with controlled oil lubrication. the special bearing facilitates the cylinder to be started at very high speed.

Accessories for Hydraulic Rotary Cylinder

Adopter for cylinder
Back plate for chuck
Draw bar / Draw tube
Partial hollow system including adopter for cylinders

Specifications

Model No	80HC	120HC	160HC	200HC
A	125	160	200	240
B (PCD)	107	145	180	220
CH6	80	95	95	95
D	90	127	158.8	197
E	M24	M24	M24	M24
F	35	35	35	35
G	40	40	40	10
H	M8	M10	M12	M12
K (No. of Holds)	12	12	12	12
J (Strokes)	32	32	32	32
K Max.	123	123	123	123
L	102	102	102	102
L Min.	70	70	70	70
M	35	35	35	35
N	10	10	10	10
Weight in kg (Approx.)	8.5	13	16	18
Max. RPM	4000	2500	2500	2500
Draw pull in kgF At 20 kg/cm²	12	25	39	63

Superior Performance for Industrial Automation

Hydraulic Rotary Cylinders deliver high capacity forces and precise rotary motion, making them indispensable in machine tools, automation systems, and indexing applications. Their rugged construction ensures continuous operation at speeds of up to 3000 rpm while maintaining high mechanical efficiency. The robust design and protective features safeguard against dust and environmental wear, significantly enhancing their service life.

Customizable for Diverse Applications

These rotary cylinders offer customizable port sizes and both hollow and solid shaft types, enabling precise adaptation to various installation and operational needs. Flange mounting and a comprehensive accessory suite, including hydraulic fittings, add to installation flexibility. With variable flow rate and capacity to operate at pressures up to 300 bar, these cylinders are tailored for seamless integration into bespoke industrial systems.

FAQs of Hydraulic Rotary Cylinder:

Q: How can the Hydraulic Rotary Cylinder be integrated into existing automation or machine tool systems?

A: The cylinder offers customizable port connections, flange mounting, and the option of hollow or solid shafts, making it easy to integrate into a wide range of systems, including machine tools, indexing devices, and rotary actuators. Hydraulic fittings and mounting accessories further facilitate seamless installation.

Q: What are the primary benefits of using a hydraulic rotary cylinder with hard chrome plating and alloy steel construction?

A: The hard chrome plating provides excellent corrosion resistance and a smooth surface finish, while the alloy steel body ensures durability and high strength. Together, these features lead to a long-lasting, reliable product suitable for demanding environments.

Q: When should I select a hollow shaft vs. a solid shaft hydraulic rotary cylinder?

A: The choice between hollow and solid shafts depends on your application. Hollow shafts allow for the passage of cables, fluids, or additional mechanical components through the center, while solid shafts are more suitable for applications requiring higher torque transmission and structural integrity.

Q: Where is this hydraulic rotary cylinder manufactured and how can it be sourced?

A: This rotary cylinder is designed and manufactured in India by a reputable exporter, manufacturer, and supplier. It can be sourced directly from the supplier, who exports to international markets and provides support for custom requirements.

Q: What is the operational process for using the hydraulic rotary cylinder?

A: The cylinder connects to a hydraulic system via customizable ports. Upon hydraulic power delivery (operating pressure up to 300 bar), it produces precise, continuous rotary motion. The devices dust protection and hard chrome finish enable smooth, maintenance-friendly performance.

Q: How does the dust protection cover enhance the operation of the rotary cylinder?

A: The dust protection cover safeguards critical moving components from contaminants, thus reducing wear, extending service life, and minimizing maintenance needseven in harsh industrial environments.

Q: What are the recommended applications and advantages of choosing this high-torque rotary cylinder?

A: Recommended for machine tools, automation systems, indexing devices, and rotary actuators, this cylinder offers high torque, continuous rotation, corrosion resistance, and customizable configurations, delivering precise and reliable performance across diverse industrial scenarios.
