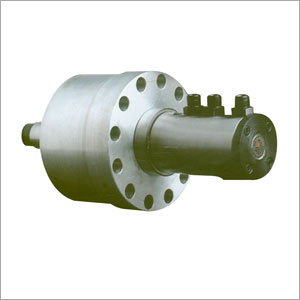

Rotary Cylinder

Rotary Cylinder
Rotary Cylinder
Product Code : 07
Product Description

We are counted among the leading organizations, engaged in manufacturing, supplying and exporting supreme grade Rotary Cylinder. These cylinders are assembled by our expert professionals by making use of high-grade “O” rings and seals, obtained from the trustworthy vendors of the market. Offered products are widely used in various industries to ensure leak-proof and less heat generation, while operating power chuck or collet chucks. The Rotary Cylinder is confirmed for testing after testing to ensure longer service life and high performance.


Other details:

The cylinders are equipped with catchers to collect oil running through the machine spindle and return it to the reservoir.

Special Features
The design of cylinder is such that the distributor shaft rotates on special bearing with controlled oil lubrication. the special bearing facilitates the cylinder to be started at very high speed.

Accessories for Hydraulic Rotary Cylinder

  • Adopter for cylinder

  • Back plate for chuck

  • Draw bar / Draw tube

  • Partial hollow system including adopter for cylinders

Specifications

Model No

80HC

120HC

160HC

200HC

A

125

160

200

240

B (PCD)

107

145

180

220

CH6

80

95

95

95

D

90

127

158.8

197

E

M24

M24

M24

M24

F

35

35

35

35

G

40

40

40

10

H

M8

M10

M12

M12

K (No. of Holds)

12

12

12

12

J (Strokes)

32

32

32

32

K Max.

123

123

123

123

L

102

102

102

102

L Min.

70

70

70

70

M

35

35

35

35

N

10

10

10

10

Weight in kg (Approx.)

8.5

13

16

18

Max. RPM

4000

2500

2500

2500

Draw pull in kgF At 20 kg/cm2

12

25

39

63
