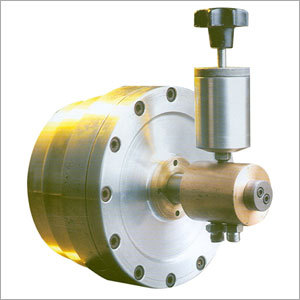

Pneumatic Rotary Cylinder

Get a Price/Quote

Pneumatic Rotary Cylinder Specification

Power
Compressed Air

Structure
Double rack & pinion rotary actuator

Material
Aluminium Body with Steel Shaft

Air Consumption
Variable, depends on load and stroke

Maximum Torque
10 Nm (Typical)

About Pneumatic Rotary Cylinder

With the support of our high-ranking officials, we are able to manufacture, supply and export high quality Pneumatic Rotary Cylinder. Our cylinders are fitted with bearings made of quality materials to ensure high speed performance. We manufacture these cylinders in compliance with industry laid parameters and the latest market trends. The Pneumatic Rotary Cylinder is manufactured in our well-equipped infrastructure facility by fitting air filters and fork shaped champs to the intake aperture.

Other details:

Pneumatic cylinders are similar to hydraulic cylinders, the main difference being they are actuated by air instead of oil. Due to this they contain special bearing which allow the cylinder to rotate at higher speeds in comparison to hydraulic cylinders.

Recommendations

To prevent the stationary air feed unit from rotating, a fork shaped champ must be fitted to the intake aperture.
Flexible in-feed lines must be used. Rigid tubing is unsuitable.
Use of air filters are recommended for smooth operation (use FRL unit) with these cylinders.

Accessories for Pneumatic Rotary Cylinder

Adopter for cylinder
Back plate for chuck
Draw bar / Draw tube
Partial hollow system including adopter for cylinder

Specifications

Model	120CP140	160CP140	200CP175	250CP225	315CP225
A	150	200	240	300	365
B	150	180	220	280	345
C	120	160	200	250	250
D	80	120	150	200	200
E	120	161.5	197	241	304.8
F	100	140	175	225	225
G	M8x12	M10x12	M12x12	M12x12	M12x12
H	M10x6	M10x6	M12x6	M12x6	M16x6
L1	111	116	116	116	116
L2	315	315	315	315	315
Stroke	35	35	35	35	35
Weight (kg)	10	12.5	14.5	24	28.5
Max RPM	1800	1800	1800	1800	1800

Precision Rotary Motion Solution

Engineered with a double rack and pinion structure, this pneumatic rotary cylinder excels in achieving highly precise angular motion. Its 0.2 repeatability assures consistency in applications such as material handling, automation, and process control, where reliability is paramount.

Customizable and Easy to Install

Users can request customized rotation angles to meet specific project requirements. The cylinder also offers versatile mounting solutionsflange and foot optionsmaking it suitable for diverse setups within limited workspace environments.

Long-Lasting, Low-Maintenance Operation

Built to withstand over 10 million cycles, the actuators aluminium body and NBR seals provide resistance to wear. Lubrication is not mandatory, but using it can further extend operational life, making this cylinder an efficient and cost-effective choice.

FAQs of Pneumatic Rotary Cylinder:

Q: How can I customize the rotation angle of the pneumatic rotary cylinder?

A: You may request a specific rotation angle within the 0 to 180 range when placing your order. Customization options ensure the cylinder fits the exact needs of your application.

Q: What is the recommended operating pressure for this rotary actuator?

A: The cylinder operates effectively within a pressure range of 2 to 8 bar, allowing flexibility to adapt to various pneumatic system requirements.

Q: Where can this pneumatic rotary cylinder be mounted?

A: Flange and foot mounting options are available, providing adaptable installation in different industrial automation setups according to your space and structural constraints.

Q: What is the process for maintaining this pneumatic cylinder?

A: Routine maintenance is minimal due to the use of NBR seals and durable materials. Lubrication is not required but may be added to enhance longevity, especially in demanding applications.

Q: What advantages does the double rack and pinion structure offer?

A: The double rack and pinion configuration ensures balanced torque output and high repeatability, providing smooth rotation and reliable performance in automated tasks.

Q: What are the main benefits of using this actuator in industrial applications?

A: Key benefits include customizable rotation angles, extended working life exceeding 10 million cycles, low maintenance needs, and precise positioning, making the actuator ideal for robust industrial use.
